Using Mixed Precision in Core ML
This guide explains how to improve accuracy while maintaining speed by using mixed precision in Core ML.
About Core ML
Core ML is an AI framework provided by Apple. Core ML abstracts the CPU, GPU, and ANE (NPU), enabling fast AI inference on Apple hardware.
Source: https://www.youtube.com/watch?v=LOYD9aQNuGM
Core ML models are in the .mlpackage format. You can export a .mlpackage from a PyTorch model using coremltools.

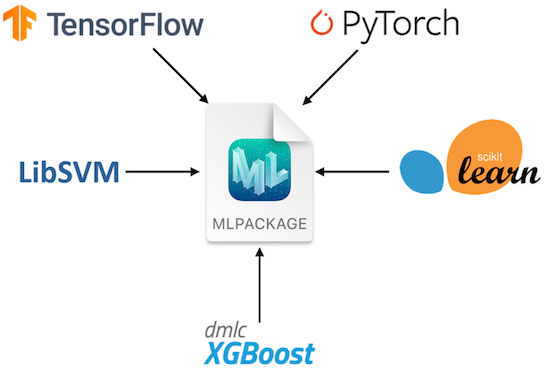

About MLPACKAGE (Source: https://developer.apple.com/documentation/coreml/)
You can run inference on the exported .mlpackage using the Python API. You can also convert the .mlpackage to a .mlmodelc to run inference from Swift.
About ANE

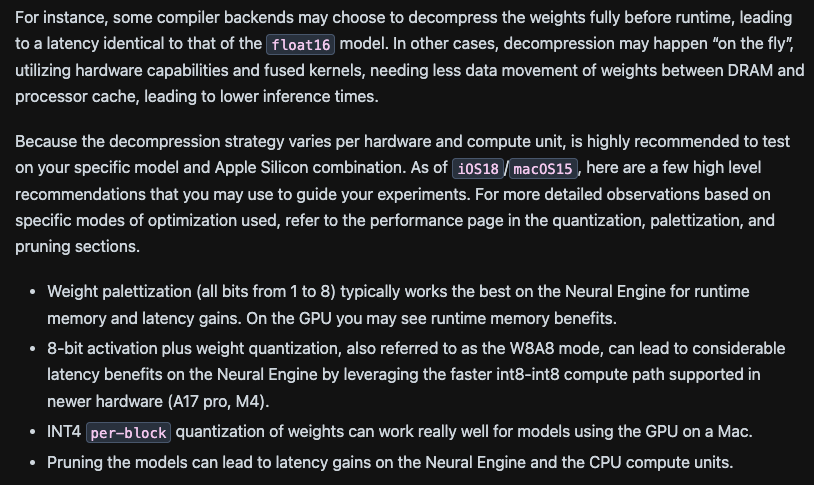

The ANE is Apple’s NPU (Apple Neural Engine). It is primarily an architecture intended to run inference in FP16. Through the M3 generation, it only supports weight quantization, and INT8 quantization is used to reduce model size and save memory bandwidth.
Notably, the A17 Pro and M4 add support for INT8 operations, which can enable further inference speedups depending on the use case.。
Converting models from PyTorch to Core ML
Using coremltools, you can export an .mlpackage from a PyTorch graph. Core ML tensors operate in FP16, so no calibration data is required for exporting to an .mlpackage. coremltools also supports Linux and can be used in non‑macOS environments.
import coremltools as ct
import coremltools.optimize.coreml as cto
def export_encoder(vision_encoder, args):
image_input = torch.randn(1, 3, 1024, 1024, dtype=torch.float)
traced_model = torch.jit.trace(vision_encoder, image_input)
outputs = [ct.TensorType(name="image_embeddings")]
coreml_model = ct.convert(
traced_model,
inputs=[ct.TensorType(shape=image_input.shape, name="image")],
outputs=outputs,
convert_to="mlprogram"
)
return coreml_model

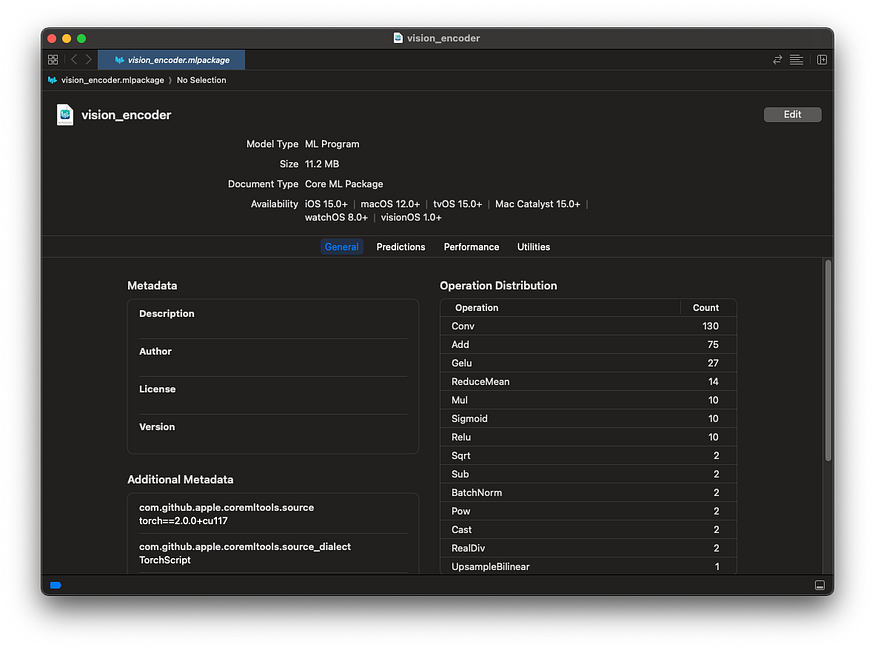

You can view details of the converted .mlpackage by double-clicking it in Finder on macOS.

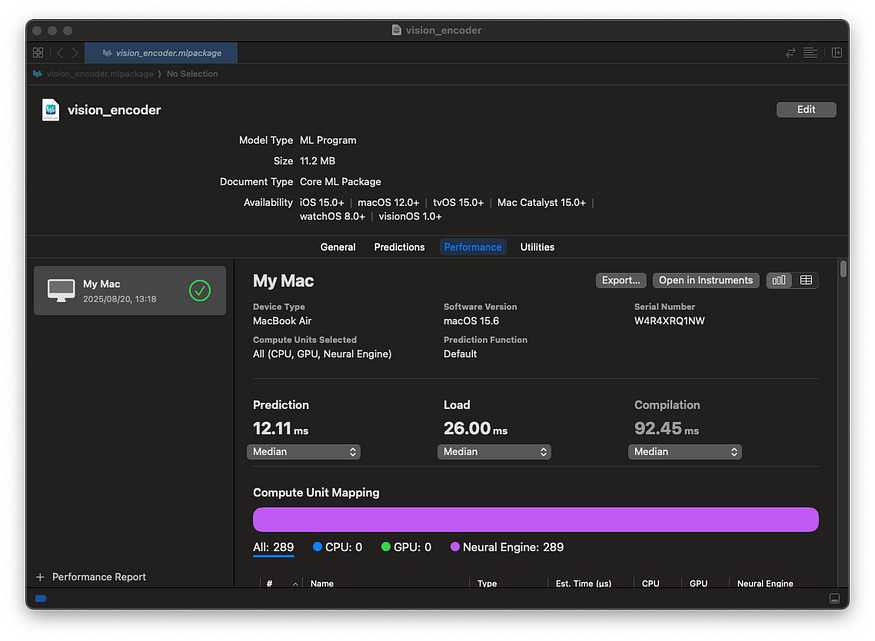

You can also measure inference speed using Performance.
Running inference on Core ML models in Python
To run a Core ML model in Python, use the code below. Create an MLModel instance from the .mlpackage and perform inference with predict.
import coremltools as ct
encoder_model_path = "encoder.mlpackage"
encoder_model = ct.models.MLModel(encoder_model_path, ct.ComputeUnit.ALL)
encoder_inputs = {
"image": image_input_expanded,
}
encoder_output = encoder_model.predict(encoder_inputs)
embedding = encoder_output['image_embeddings']
Converting from .mlpackage to .mlmodelc
To convert an .mlpackage to a .mlmodelc, use the command below. Use coremlc with the compile option and provide the .mlpackage.
/Applications/Xcode.app/Contents/Developer/usr/bin/coremlc compile encoder.mlpackage ./
Running inference on Core ML models in Swift
To run a Core ML model in Swift, use the code below.
private var encoderModel: MLModel?
let encoderURL = URL(fileURLWithPath: "encoder.mlmodelc")
encoderModel = try MLModel(contentsOf: encoderURL)
imagePixel = Array(repeating: 0.0, count: totalPixels * 3)
// fill imagePixel
let inputArray = convertToMLMultiArray(
imagePixel: imagePixel,
inputShape: [1,3,
inferenceSize.width as NSNumber,
inferenceSize.height as NSNumber])
let input = try MLDictionaryFeatureProvider(dictionary: [
"image": inputArray // inputArray must be MLMultiArray
])
let result = try encoderModel.prediction(from: input)
var imageEmbeddings: MLMultiArray! = nil
imageEmbeddings = result.featureValue(for: "image_embeddings")?.multiArrayValue
let pointer = UnsafeMutablePointer<Float32>(OpaquePointer(imageEmbeddings.dataPointer))About Core ML accuracy
Core ML runs in FP16 by default. Components such as a Transformer’s LayerNorm can lack sufficient dynamic range in FP16, which may lead to reduced accuracy.
Specifically, FP16 has a 5-bit exponent, with a maximum finite value of 65,504. With bfloat16 (BF16), the exponent is 8 bits — the same as FP32 — so you don’t encounter range limitations; however, on the ANE’s FP16, operations like SquaredDifference and Pow can overflow and produce NaNs.。
In such cases, you should run inference in FP32 instead of FP16 to prevent overflow. To output an FP32 model in Core ML, pass compute_precision=ct.precision.FLOAT32 to ct.convert.
import coremltools as ct
import coremltools.optimize.coreml as cto
def export_encoder(vision_encoder, args):
image_input = torch.randn(1, 3, 1024, 1024, dtype=torch.float)
traced_model = torch.jit.trace(vision_encoder, image_input)
outputs = [ct.TensorType(name="image_embeddings")]
coreml_model = ct.convert(
traced_model,
inputs=[ct.TensorType(shape=image_input.shape, name="image")],
outputs=outputs,
convert_to="mlprogram",
compute_precision=ct.precision.FLOAT32,
)
return coreml_model
However, switching to FP32 means it can no longer run on the ANE (NPU) and will run entirely on the GPU, resulting in slower inference. For example, a Vision Encoder’s latency drops from 12.23 ms to 35.57 ms.

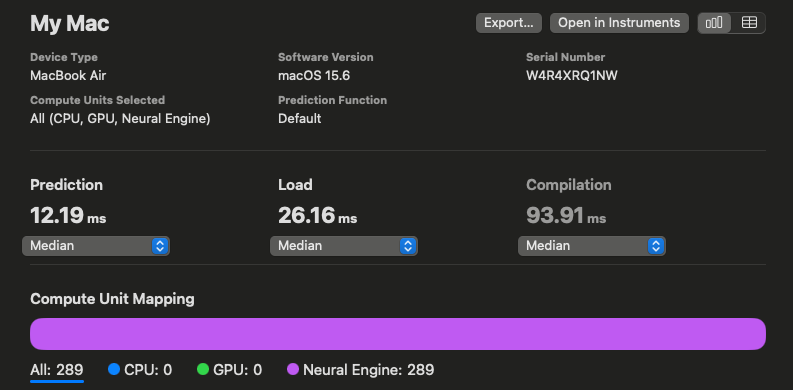

Inference speed in FP16

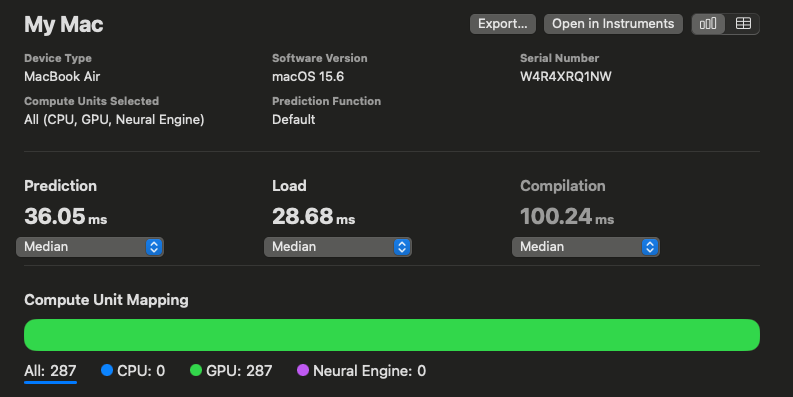

Inference speed in FP32
Using Mixed Precision
Instead of making all layers FP32, we consider making only specific layers FP32 to improve performance. This approach of mixing multiple precisions is called mixed precision.
In Core ML, you can pass compute_precision as a function during model conversion, allowing you to set only specified op_types to FP32. In the example below, l2_norm is run in FP32.
def selector(op):
return op.op_type != "l2_norm"
compute_precision = ct.transform.FP16ComputePrecision(op_selector=selector)
coreml_model = ct.convert(
...,
compute_precision=compute_precision,
)
This model includes LayerNorm, and because LayerNorm uses Pow, running in FP16 lacks sufficient range and degrades accuracy. Therefore, we run the portions corresponding to LayerNorm in FP32.

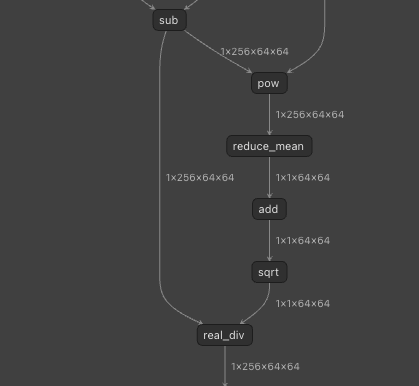

LayerNorm is decomposed into multiple operators.
Specifically, we run in FP32 the portion corresponding to LayerNorm, starting with pow and continuing through sqrt.
import coremltools as ct
import coremltools.optimize.coreml as cto
layer_norm = False
def op_selector(op):
global layer_norm
if op.op_type == "pow":
layer_norm = True
is_fp16 = not layer_norm
if op.op_type == "sqrt":
layer_norm = False
print(op.op_type, is_fp16)
return is_fp16
def export_encoder(vision_encoder, args):
image_input = torch.randn(1, 3, 1024, 1024, dtype=torch.float)
traced_model = torch.jit.trace(vision_encoder, image_input)
outputs = [ct.TensorType(name="image_embeddings")]
coreml_model = ct.convert(
traced_model,
inputs=[ct.TensorType(shape=image_input.shape, name="image")],
outputs=outputs,
convert_to="mlprogram",
compute_precision=ct.transform.FP16ComputePrecision(op_selector)
)
return coreml_model

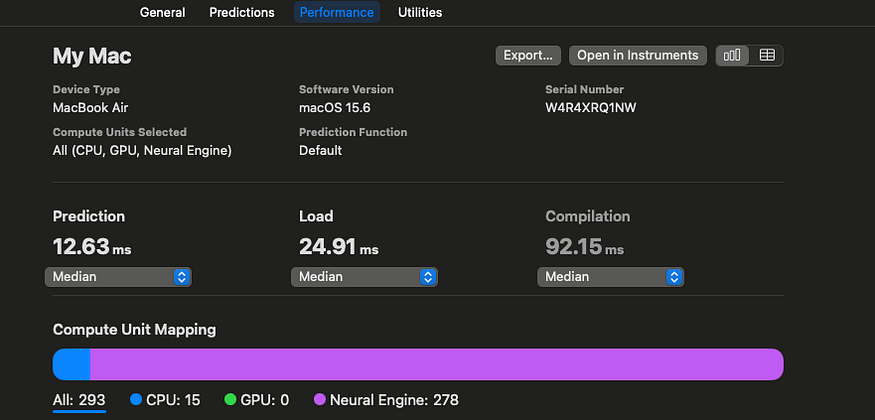

Here are the inference speeds: FP16 is 12.19 ms, FP32 is 36.05 ms, and mixed precision is 12.63 ms. Pow runs on the CPU, but everything else runs on the ANE (NPU), making it faster than the FP32 model.
Analyzing MLPackage models
The model in an MLPackage is located at encoder.mlpackage/Data/com.apple.CoreML/model.mlmodel, and it can be analyzed with Netron.

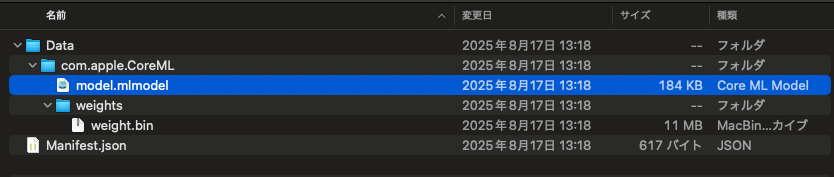

Inside an MLPackage

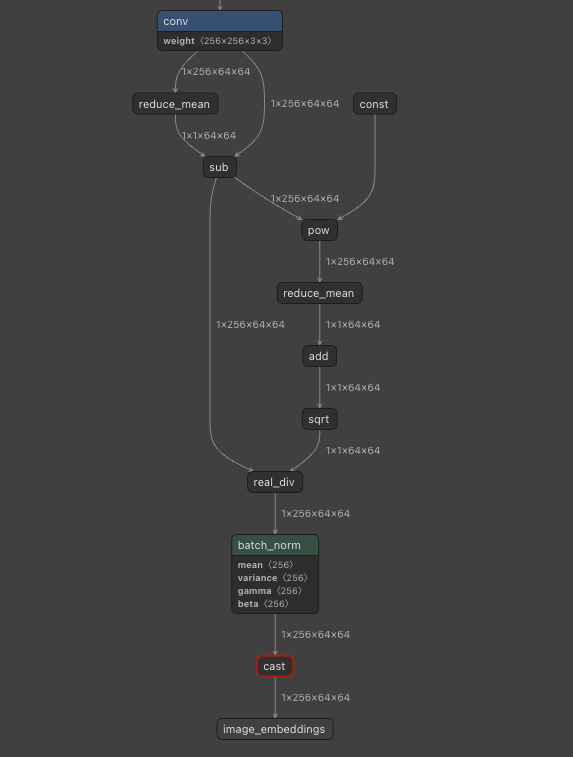

Visualizing with Netron
Summary
We confirmed that using Core ML enables inference on Apple devices with the ANE (NPU). We also confirmed that using mixed precision allows you to balance accuracy and speed.
Evaluation environment
The evaluation was conducted on a MacBook M2 with coremltools==7.1.
