UniAD: Foundational Model for End-to-End Autonomous Driving
UniAD is a foundational model for end-to-end autonomous driving. It was introduced in April 2023 by OpenDriveLab, Wuhan University, and SenseTime Research. The model received the Best Paper Award at CVPR 2023.
Just as image recognition has been integrated into vision-language models (VLMs), there is a similar trend toward integrating autonomous driving into foundation end-to-end models. UniAD proposes a core architecture for such end-to-end autonomous driving models.
Overview

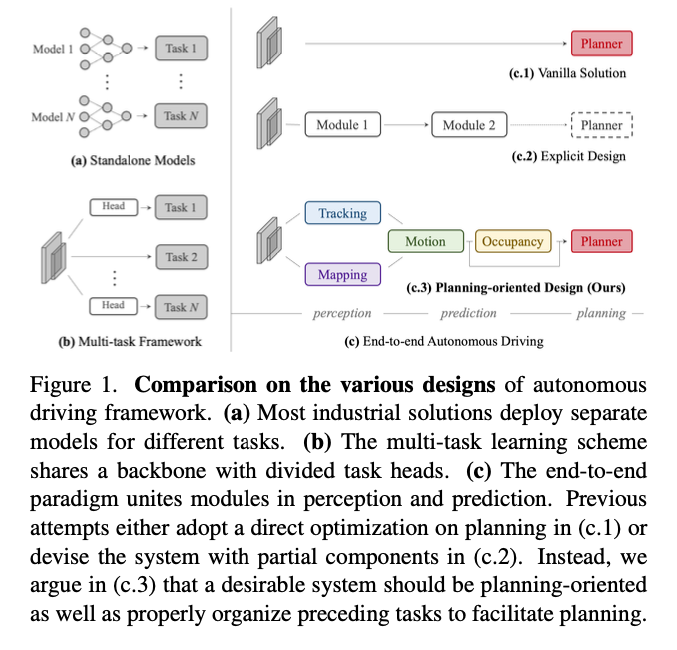

In autonomous driving, the system recognizes 3D bounding boxes from camera input, tracks objects using motion prediction, detects obstacles through occupancy estimation, and determines the optimal route using a planner in the planning phase. In conventional autonomous driving systems, perception, prediction, and planning were implemented as separate modules.
In end-to-end autonomous driving, these modules are interconnected, allowing for backpropagation from planning phase, back to perception, during training. This enables each module to learn richer intermediate representations and improve overall accuracy.
Moreover, while traditional autonomous driving systems often relied on pre-built static point cloud maps and self-localization to determine the vehicle’s position and navigate using virtual guides based on the map, UniAD creates maps online, eliminating the need for static maps and enabling autonomous driving without them.
Source: https://arxiv.org/abs/2212.10156
Architecture

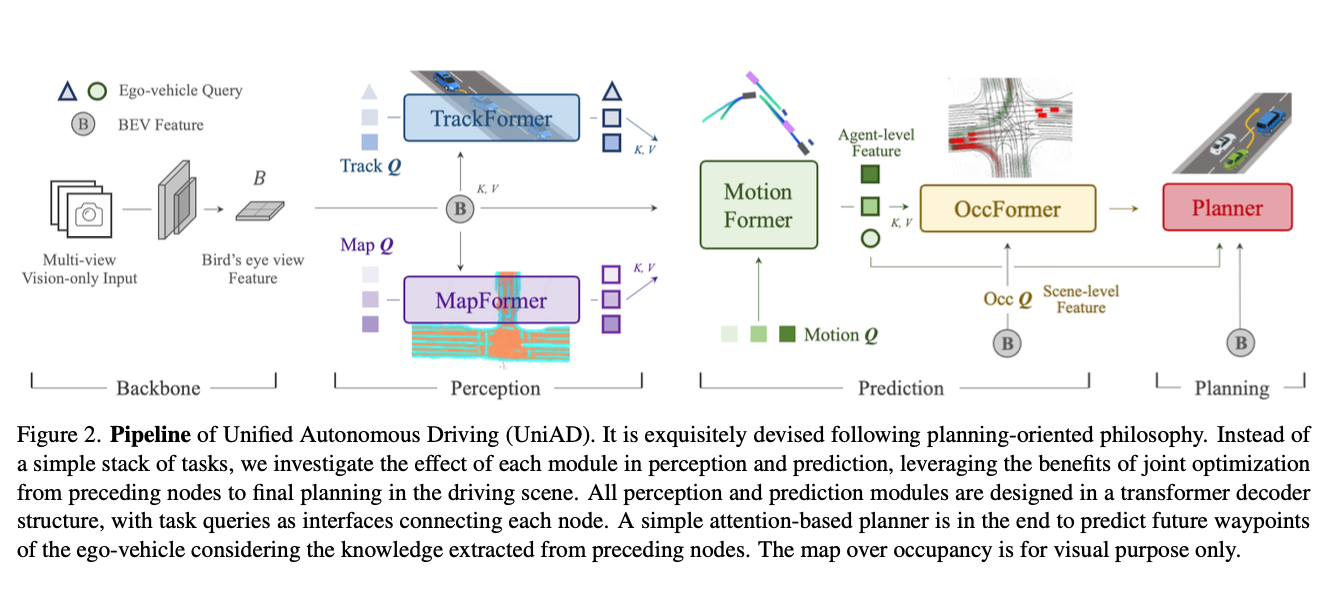

UniAD does not use LiDAR and instead processes multi-view camera images. These camera images are handled in the BEV (Bird’s Eye View) feature space. Within this space, UniAD performs the generation and tracking of agents (such as oncoming vehicles and pedestrians) using TrackFormer, online map creation using MapFormer, trajectory prediction for each agent using MotionFormer, occupancy prediction using OccFormer, and route planning using the Planner.
Source: https://arxiv.org/abs/2212.10156

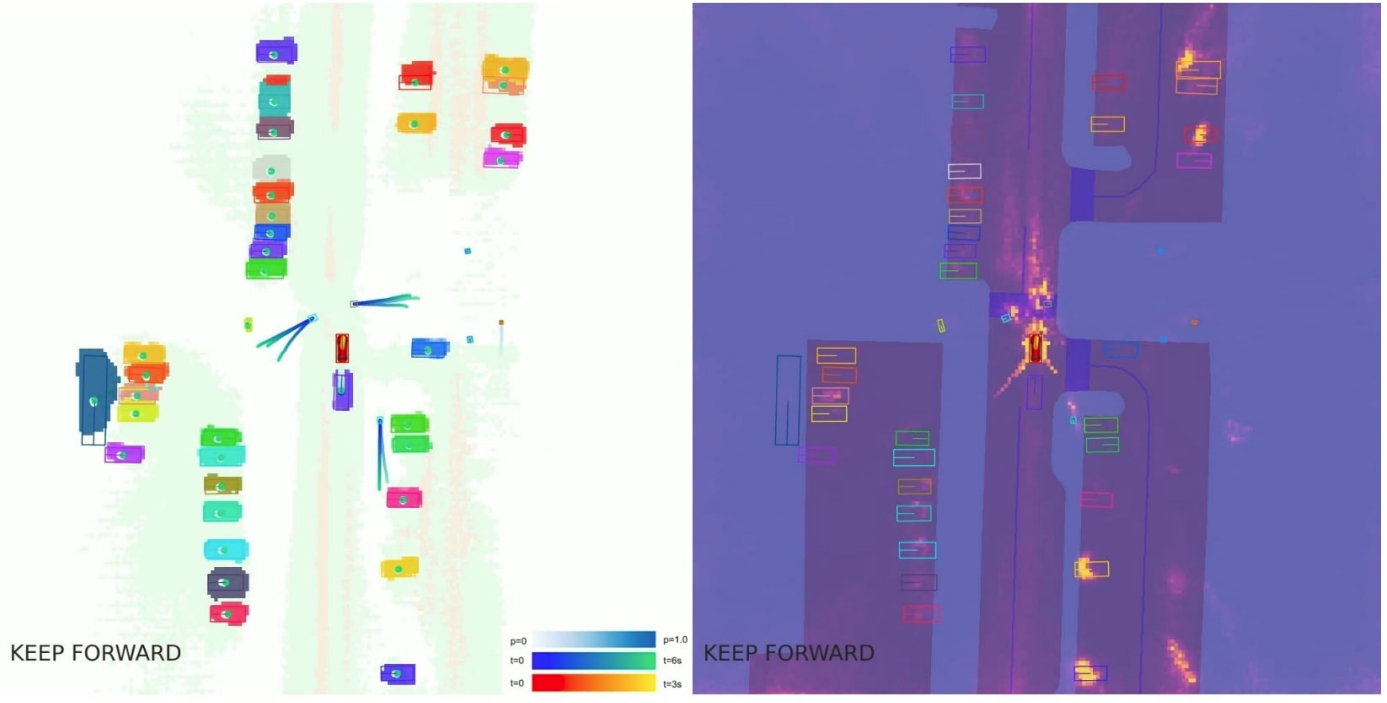

Here is an example of visualizing UniAD’s intermediate prediction results projected onto camera images and the BEV space. Although UniAD performs learning and trajectory prediction in an end-to-end manner, the outputs of each module can be visualized individually, allowing for verification of whether the system is recognizing the environment appropriately.

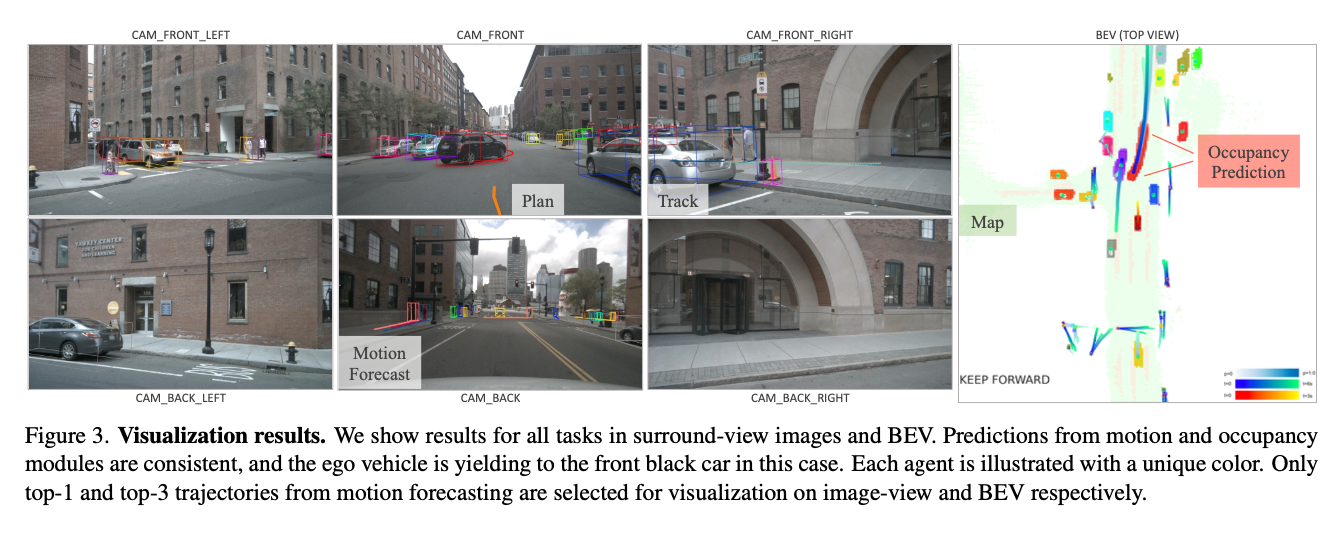

Source: https://arxiv.org/abs/2212.10156
About BEV
From the input images, frustum features are generated and then rearranged into a top-down perspective through BEV transformation.

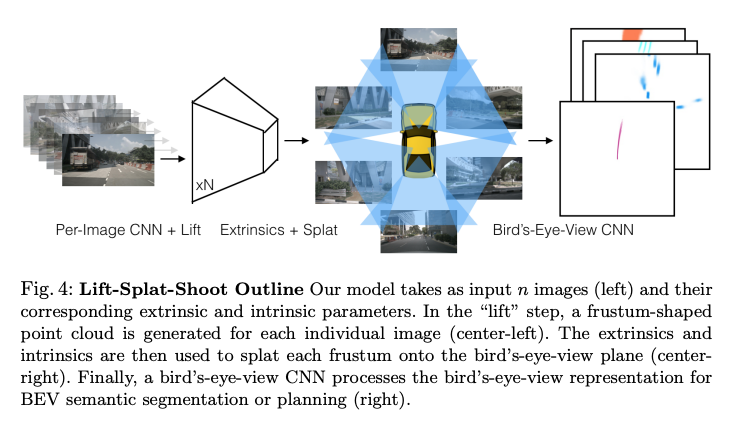

Frustrum Features (Source: https://arxiv.org/abs/2008.05711)
First, ResNet is applied to the camera images to extract 2D features, which are then transformed into frustum features with depth information. A frustum is a 3D shape, typically a pyramid or cone, that defines the visible area from a camera or viewpoint. Objects within this region are what the camera can capture. Frustum features are represented as voxels, with each voxel containing feature values extracted using ResNet. This structure enables unified processing of camera imagery and LiDAR-like spatial information.
There are various methods for “lifting” from 2D to 3D. We can mention the ones that use 2D depth estimation, camera pose and configuration, or LiDAR information as constraints.

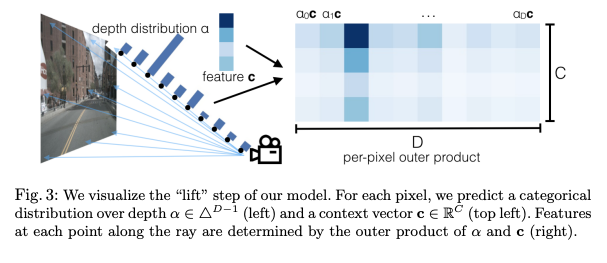

Lifting using depth estimation (Source: https://arxiv.org/pdf/2008.05711)

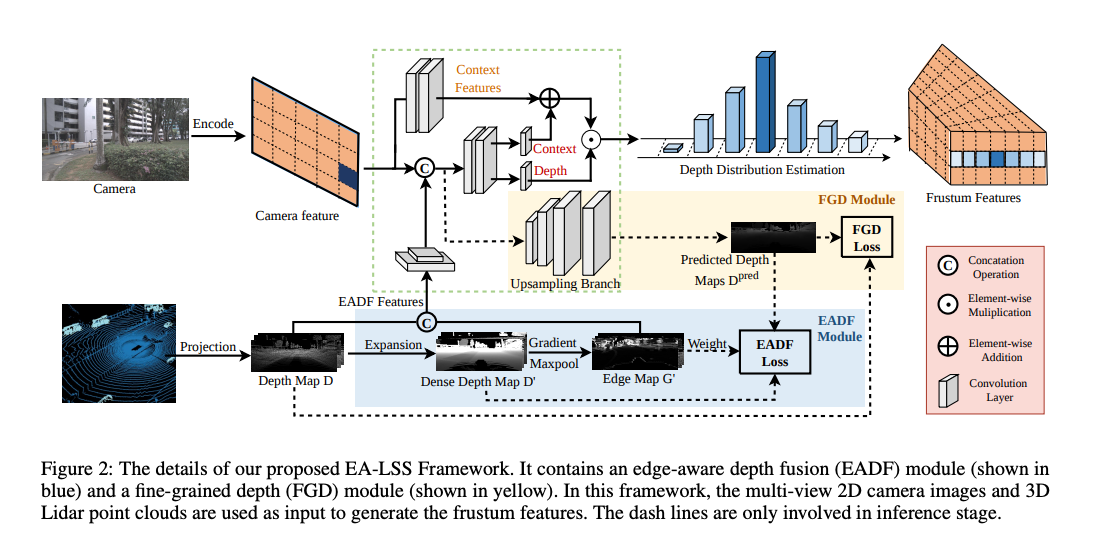

Lifting using LiDAR information as a constraint (Source: https://arxiv.org/abs/2303.17895)
Finally, the data is rearranged into a top-down view through BEV transformation from the frustum features.
Closer look at each architecture module

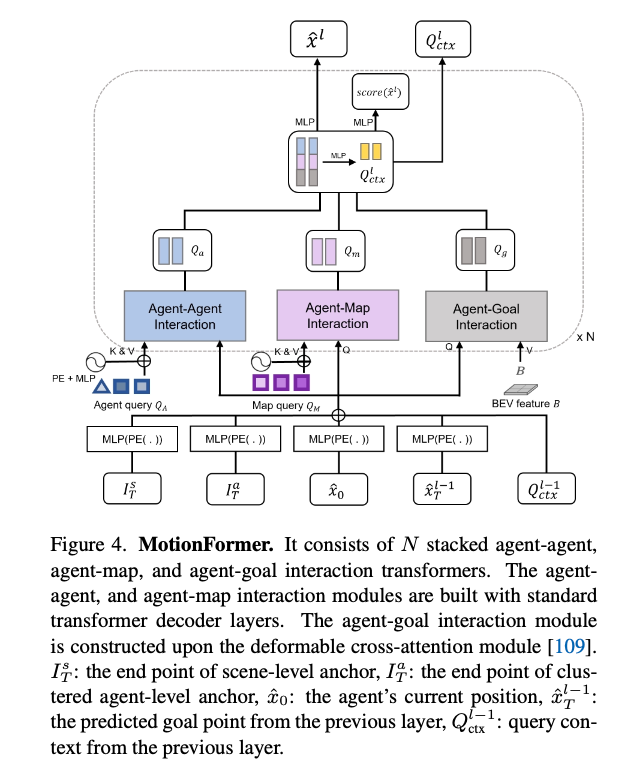

MotionFormer receives the outputs of TrackFormer and MapFormer as keys and values, and combines them with the BEV features to predict the trajectory using a Multi-Layer Perceptron (MLP).
Source: https://arxiv.org/abs/2212.10156

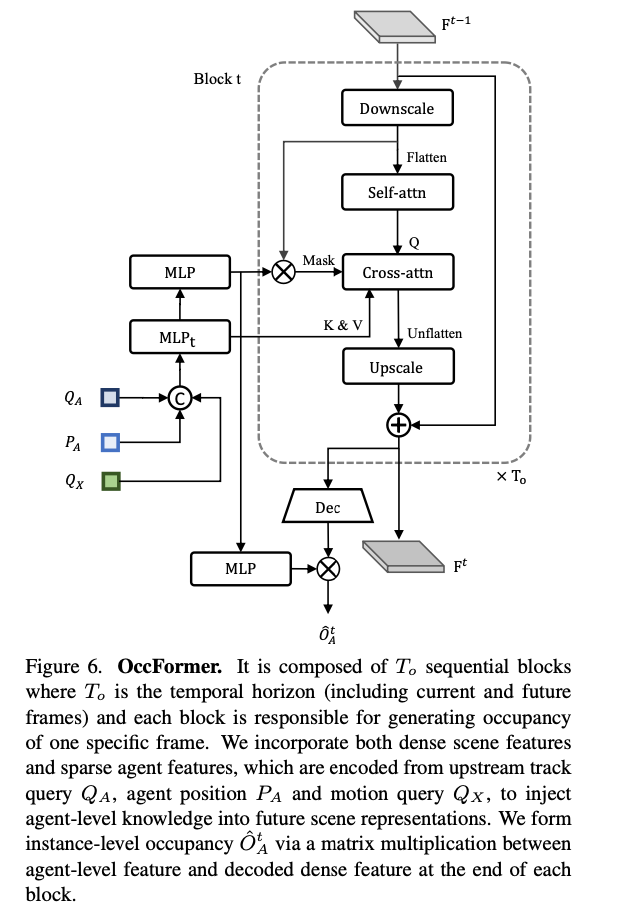

OccFormer is structured as a Transformer using self-attention and cross-attention. It predicts the occupancy of a single frame.
Source: https://arxiv.org/abs/2212.10156

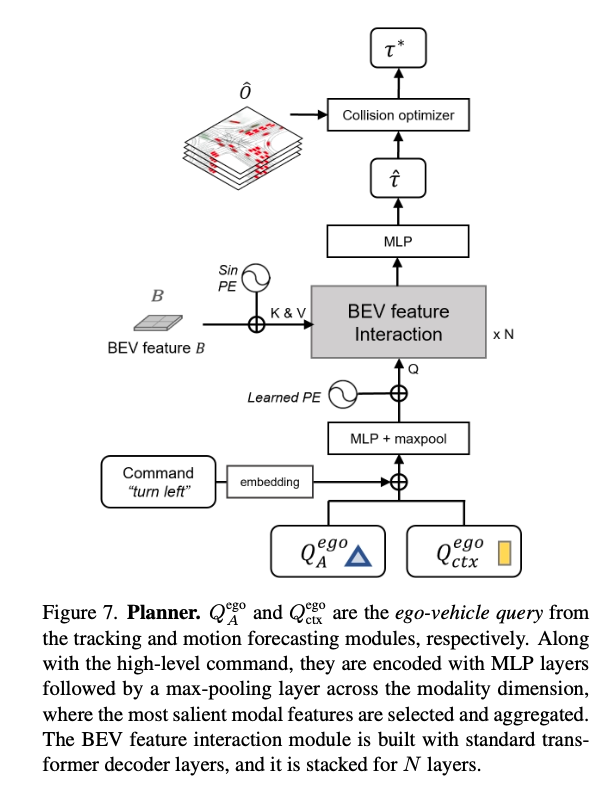

In the Planner, occupancy information from multiple frames is received, and the optimal trajectory is predicted using an MLP.
Source: https://arxiv.org/abs/2212.10156
Evaluation
UniAD has been evaluated on the nuScenes dataset.

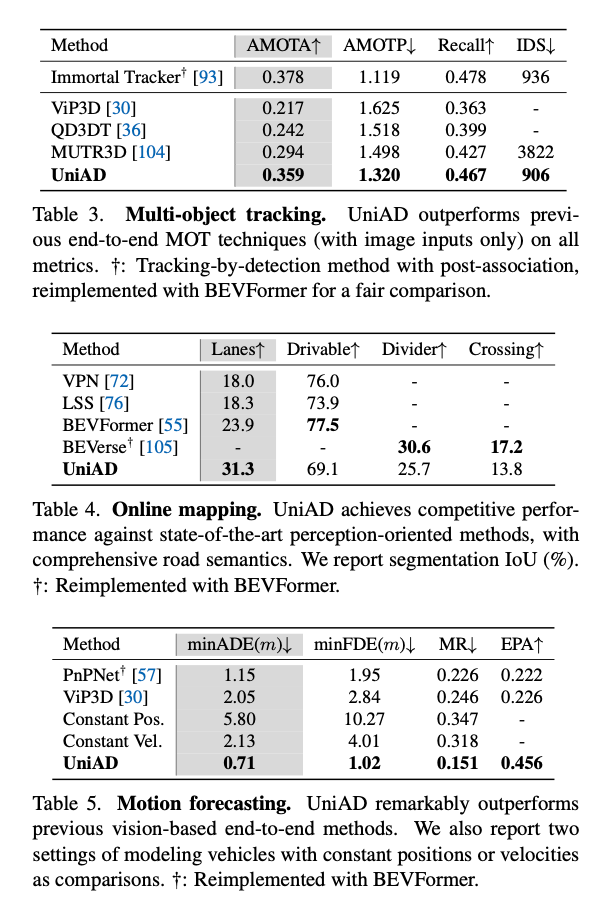

Although UniAD is trained end-to-end, it achieves performance close to state-of-the-art in individual tasks such as object tracking.
Source: https://arxiv.org/abs/2212.10156

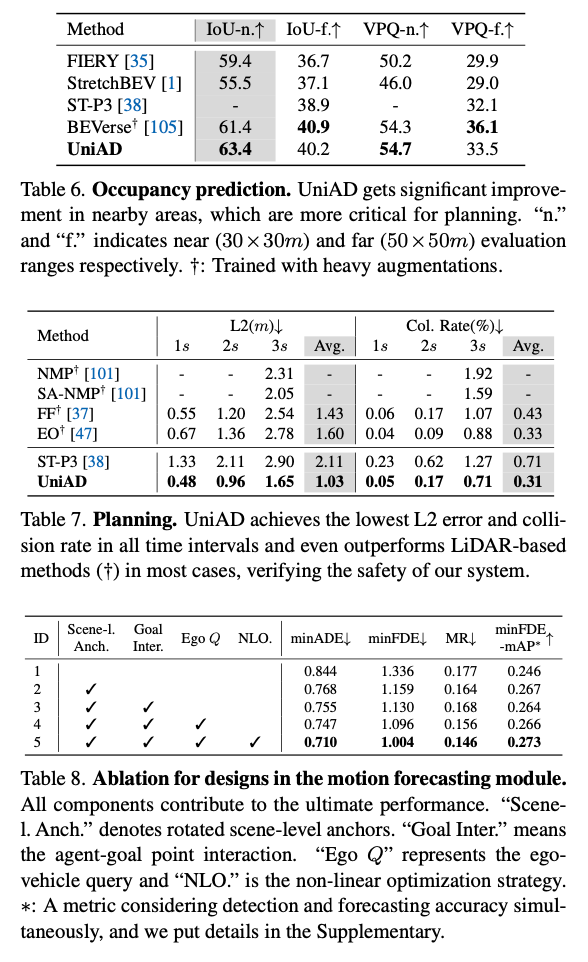

In planning, it achieves state-of-the-art performance.
Source: https://arxiv.org/abs/2212.10156
Computational cost
UniAD comes in three variants: S, M, and L.

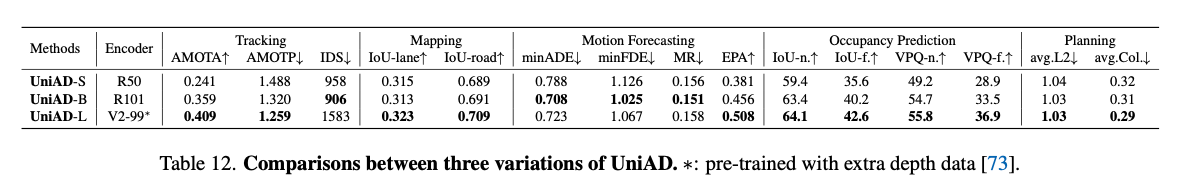

Source: https://arxiv.org/abs/2212.10156

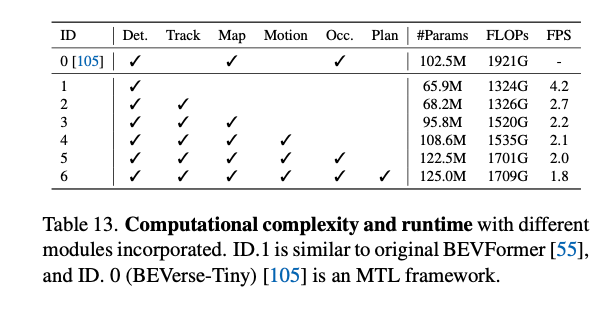

The total FLOPS required to process one frame using all modules is 1.7T FLOPS.
Source: https://arxiv.org/abs/2212.10156
Conclusion
UniAD serves as a foundational model for end-to-end autonomous driving. It has since evolved into models like FusionAD, which integrates LiDAR, and is considered a cornerstone in the development of end-to-end autonomous driving systems.
