RVC: An AI-Powered Voice Changer
This is an introduction to「RVC」, a machine learning model that can be used with ailia SDK. You can easily use this model to create AI applications using ailia SDK as well as many other ready-to-use ailia MODELS.
Overview
RVC (Retrieval-based-Voice-Conversion) is an AI-powered voice changer that can learn to perform high-quality voice transformations using just about 10 minutes of short audio samples. Traditional voice changers required two sets of data: one’s own voice and the target voice for conversion, posing the challenge of needing to prepare a personal voice dataset. RVC overcomes this by using a versatile feature extraction model called HuBERT, enabling conversion from any voice to a specific target voice.

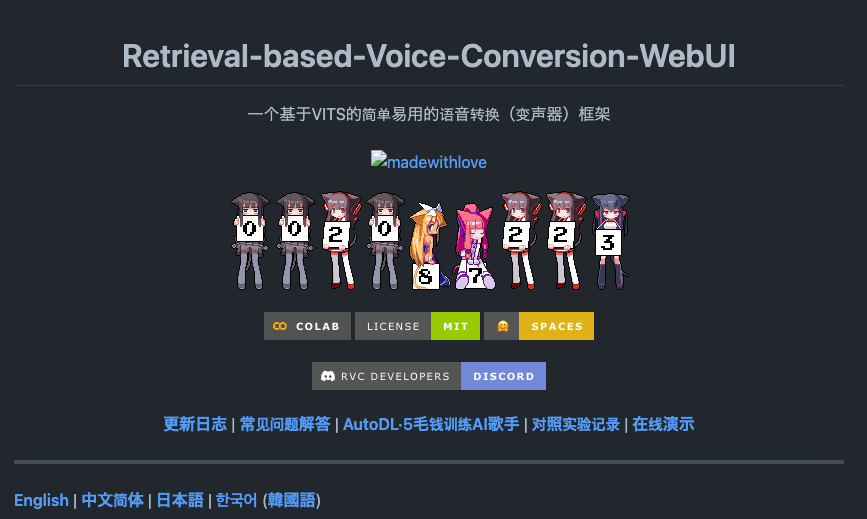

Source: https://github.com/RVC-Project/Retrieval-based-Voice-Conversion-WebUI
Architecture
Basic structure
RVC utilizes two models: Hubert for feature extraction and net_g for audio generation.
HuBERT is a versatile feature extraction model. It’s like an audio version of BERT, which is used in natural language processing. HuBERT is trained to predict masked MFCC (Mel Frequency Cepstral Coefficients) after extracting MFCC for each frame. The architecture of the model is based on Transformer.
The input to HuBERT is PCM (Pulse-Code Modulation), and it outputs a feature vector. When a PCM of size (1, 156736) is input, the resulting feature vector from HuBERT is (1, 489, 256).
The input to net_g is the feature vector, and it outputs PCM. There are 4 variants of net_g in RVC, depending on the version (1 or 2) and the presence or absence of if_f0, used for pitch guidance (details in the next section).
self.if_f0 = cpt.get("f0", 1)
self.version = cpt.get("version", "v1")
if self.version == "v1":
if self.if_f0 == 1:
self.net_g = SynthesizerTrnMs256NSFsid(
*cpt["config"], is_half=config.is_half
)
else:
self.net_g = SynthesizerTrnMs256NSFsid_nono(*cpt["config"])
elif self.version == "v2":
if self.if_f0 == 1:
self.net_g = SynthesizerTrnMs768NSFsid(
*cpt["config"], is_half=config.is_half
)
else:
self.net_g = SynthesizerTrnMs768NSFsid_nono(*cpt["config"])
The internal structure of net_g comprises several components:
- Embedding: Encodes the feature vector from HuBERT.
- TextEncoder: Encodes pitch.
- PosteriorEncoder: Generates
z, a latent representation or feature vector which captures the essential characteristics of the input audio signal - ResidualCouplingBlock: Calculates
z_p(posterior encoded vector) which embodies the modified features necessary to produce the desired output voice, incorporating aspects of the target voice while retaining the linguistic content of the original input. - GeneratorNSF: Produces PCM from the processed data.
These components work in sequence to transform the encoded audio features into a PCM audio format, effectively changing the characteristics of the voice while maintaining the original pitch and rhythm of the input.
Pitch Guidance
RVC includes a feature known as pitch guidance, internally managed by a flag called if_f0. When if_f0 is set to True, the fundamental frequency (f0) of the input voice is additionally provided during the voice synthesis process in net_g.
For extracting the f0 of the input voice, various methods are available, including the WORLDvocoder and CNN-based models like Crepe that we covered in this article. The choice of f0 extraction method does not need to match the one used during training, it can be selected arbitrarily at inference time.
By using f0, it becomes possible to reflect the original voice’s intonation (such as pitch), making it suitable for singing and other applications where maintaining the original melody or pitch pattern is crucial.
In conversational applications, to reduce processing load, models that do not utilize f0 may be used. This flexibility allows for a balance between performance and computational efficiency, depending on the specific requirements of the use case.
Faiss
RVC utilizes a vector search library called Faiss to enhance its ability to closely match the original voice. This feature works by selecting the feature vectors from the training dataset that are closest in distance to the feature vector of the input voice, as extracted by Hubert. By performing a weighted average with the input voice’s HuBERT features, the system approximates the characteristics of the original voice more closely.
When using Faiss, enabling the Protect mode adjusts the process based on the fundamental frequency (f0). If the f0 is less than 1, the segment is considered silent, and the degree of reflection of the original voice’s characteristics is increased. This approach makes it easier to reflect nuances like breath sounds in the synthesized voice, enhancing the naturalness and expressiveness of the voice conversion.
Usage
Setup
The official RVC can be launched as a web UI.
You start by cloning the repository and installing the dependent libraries. At the time of writing, the dependent libraries are not compatible with Python 3.11, therefore Python 3.10 is used.
The full setup procedure is described in English here, for Windows and Mac, as well as NVidia / AMD / Intel hardware. You can also directly download the complete package as a zip file.
For macOS, due to compatibility issues with certain layers, it is necessary to run on the CPU. This can be achieved by using the following command:
export PYTORCH_ENABLE_MPS_FALLBACK=1
Inference

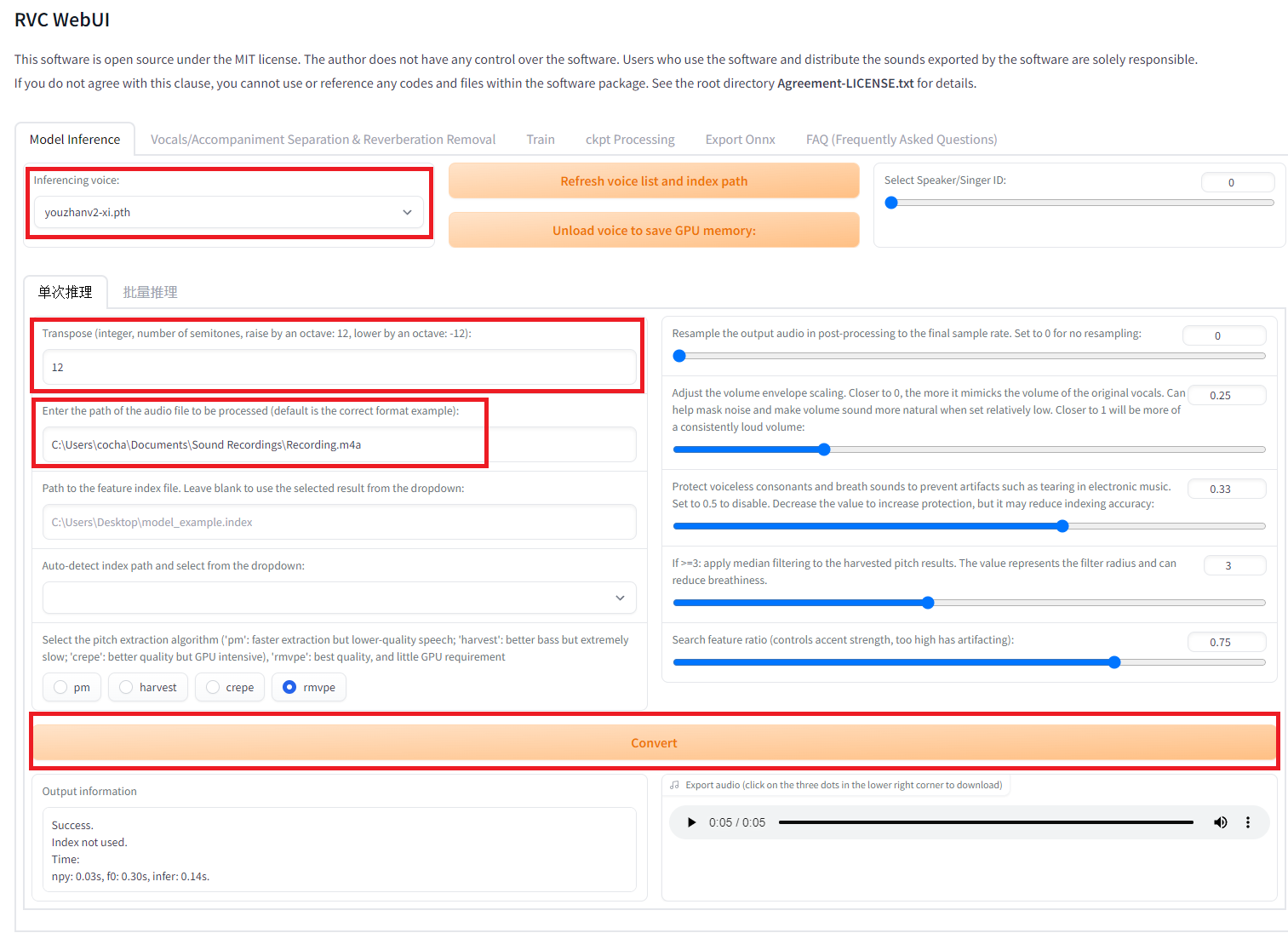

Once the web UI is launched, specify the model and input the audio file, then press the conversion button. If you are using a model that includes F0 and want to convert from a male to a female voice, specify +12 in the pitch change settings named Transpose in the UI.
Interface with version updated1006v2
Training

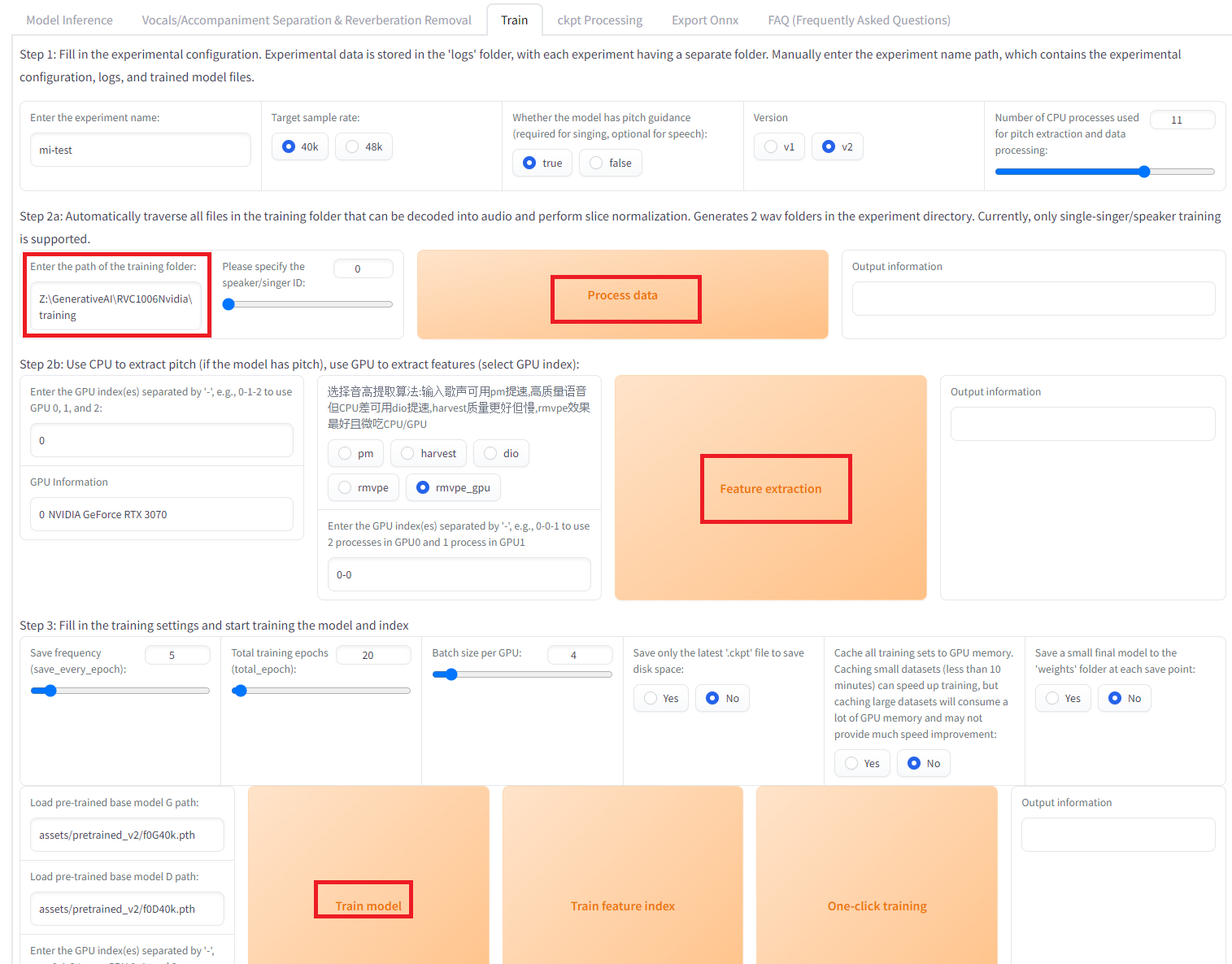

For training, use the Train tab.
Download the initial weight file, f0G40k.pth, and place it in the pretrained_v2 directory.
Store the audio files for training in a folder and set this folder path in the UI. Then click on Process data , Feature Extraction and finally Train model.
Interface with version updated1006v2
If necessary, to acquire the features for Faiss, click on Train Feature Index. The training results will be stored in the ‘weights’ folder. Training completes in about 5 minutes with 7 minutes of audio.
RVC v1 and v2
When training RVC, you can choose between versions v1 and v2. In v1, the output from HuBERT and the input to net_g are 256-dimensional. In v2, these become 756-dimensional. This difference in dimensionality affects the detail and quality of the voice conversion, with v2 potentially offering more nuanced voice transformations due to its higher-dimensional feature space.
Conversion to ONNX

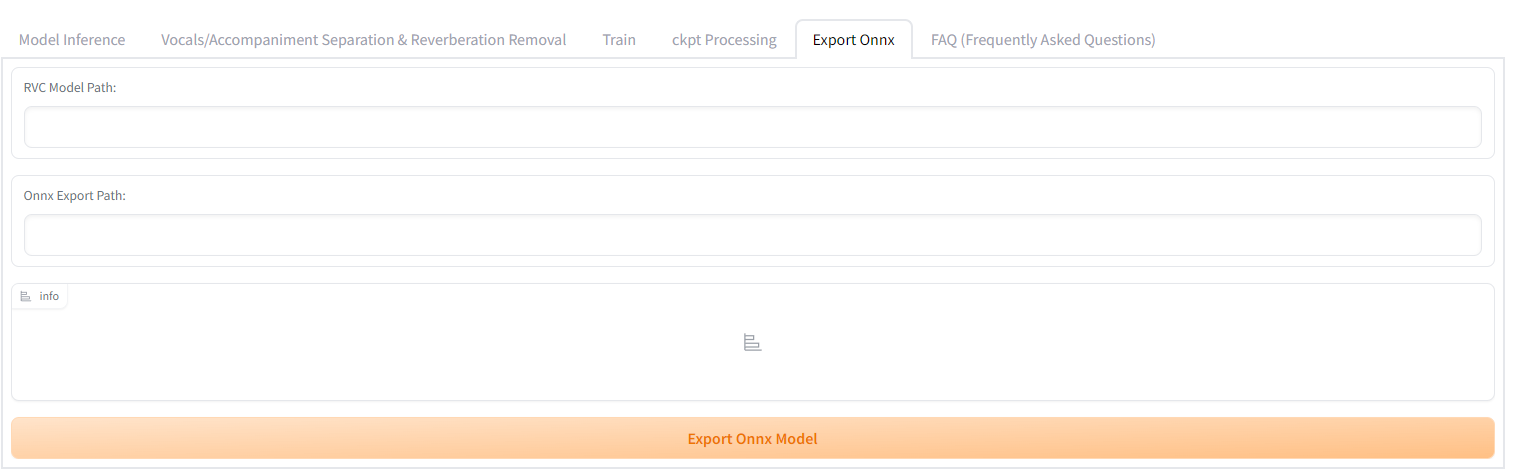

RVC officially supports the conversion of the net_g model to ONNX format. To perform the conversion, select the Export ONNX tab, specify the .pth file for the RVC model path, and the .onnx file for the ONNX output path and press the export button. This feature facilitates the use of RVC models in a variety of environments and platforms that support ONNX, enhancing the versatility of the voice conversion model.
Interface with version updated1006v2
Regarding HuBERT, it’s possible to convert it to ONNX using the torch nightly version by modifying the source code of RVC. Since HuBERT is independent of the audio source and is commonly used, you can directly use the ONNX file already converted by our company.
The model sizes are 293.5MB for hubert_base , and 110.2MB for net_g.
Using RVC from ailia SDK
You can convert the input audio using the following command:
$ python3 rvc.py -i input.wav
By default, we use the following model under the MIT License. This model does not utilize F0 (fundamental frequency).
A model that utilizes F0 (fundamental frequency) can be executed using the following command. The index is an option for Faiss.
python3 rvc.py -i 0-input.wav -m Rinne.onnx --f0_method harvest --f0 1 --f0_up_key 11 --tgt_sr 48000 --file_index Rinne.index --index_rate 0.75
Our company is conducting tests with the following model. Since this model cannot be redistributed, please use it after converting it to ONNX format.
When using the RVC v2 model, add 2 to the version option.
Using RVC from Unity
By using the ailia SDK, you can utilize RVC in Unity. In the following example, the input audio is split into AudioClip segments using SileroVAD. RVC is then applied to each AudioClip, and the voice-changed clip is outputted and played through an AudioSource. This setup supports both models that use F0 and those that do not. For calculating F0, crepe_tiny is used.
