RT-DETR: Hybrid Object Detection Model Combining Convolutions and Transformers
This is an introduction to「RT-DETR」, a machine learning model that can be used with ailia SDK. You can easily use this model to create AI applications using ailia SDK as well as many other ready-to-use ailia MODELS.
Overview
RT-DETR is an object detection model with a hybrid architecture combining Convolutions and Transformers, released by Baidu in April 2023. RT-DETRv2, an improved version of RT-DETR, was released later in July 2024. By introducing this hybrid approach, RT-DETR achieves fast and highly accurate object detection.
Architecture
In object detection, convolution-based models such as YOLO are well known. However, its speed and accuracy rely on Non-Maximum Suppression (NMS). NMS is a process that detects overlapping bounding boxes and removes duplicates based on their overlap. This algorithm has several issues, such as difficulty in setting thresholds, excessive removal of overlapping objects, lack of consideration for overlaps between different classes, and excessive suppression of low-scoring objects, such as those in dark images or partially occluded objects.
To address these issues, recent models like DETR have emerged, utilizing Transformers to eliminate the need for NMS. However, DETR has the drawback of high computational cost.
RT-DETR achieves fast and highly accurate object detection by using a hybrid encoder that combines Convolutions and Transformers.
Below is a benchmark of the inference speed and accuracy of RT-DETR. Models positioned toward the upper left are higher performing, and we can see that RT-DETR outperforms YOLOv8.
Source: https://arxiv.org/abs/2304.08069
About hybrid encoder
The hybrid encoder is designed for efficient multi-scale feature processing.

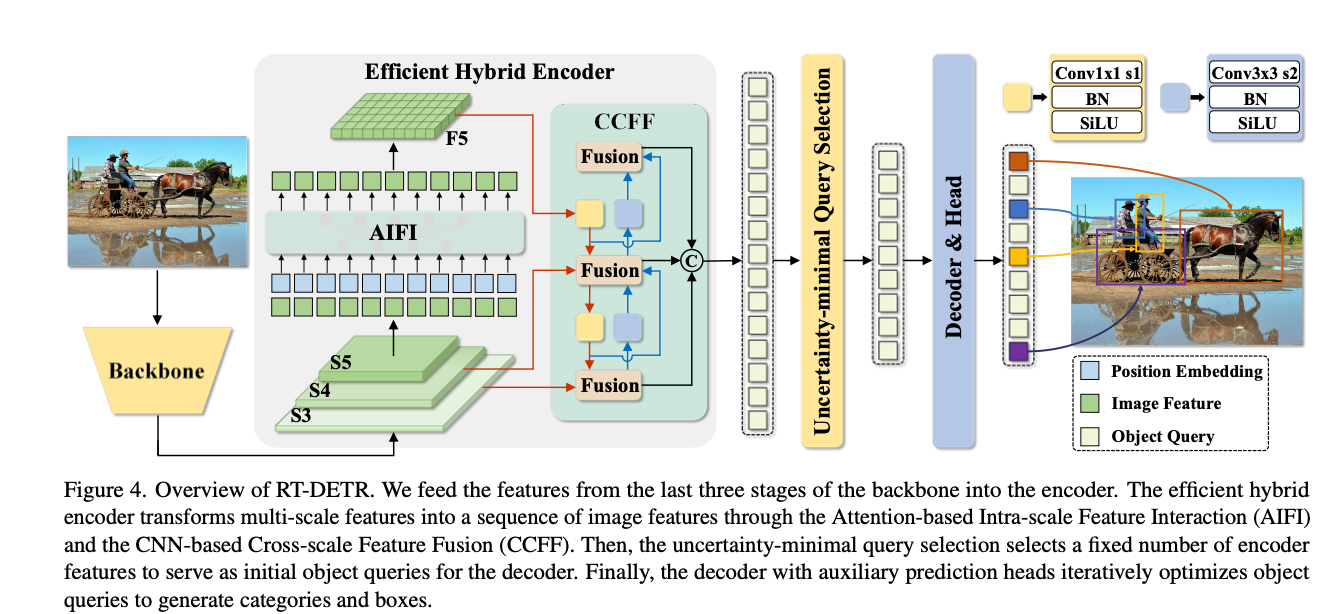

RT-DETR uses ResNet50 as backbone. First, the input image is fed into the convolution-based backbone to extract feature vectors. Then, Attention is applied using the Transformer-based AIFI, and multi-scale features are fused using the convolution-based CCFF.
Source: https://arxiv.org/abs/2304.08069
AIFI (Attention-based Intra-scale Feature Interaction) aims to capture relationships between conceptual entities by applying self-attention to high-level features, particularly those from the final stage (S5). By performing self-attention only on features rich in high-level semantic information, it reduces computational cost while enhancing object localization and recognition. It is not applied to low-level features (S3 or S4) to avoid redundancy and confusion.
CCFF (CNN-based Cross-scale Feature Fusion) introduces a fusion block composed of multiple convolutional layers to perform cross-scale feature fusion. This fusion block combines features from adjacent scales into new features, and ultimately fuses them in a lightweight and efficient manner using a CNN-based approach. This enables efficient interaction between different scales and systematically integrates high-level features rich in semantic information with low-level features.
Benchmark

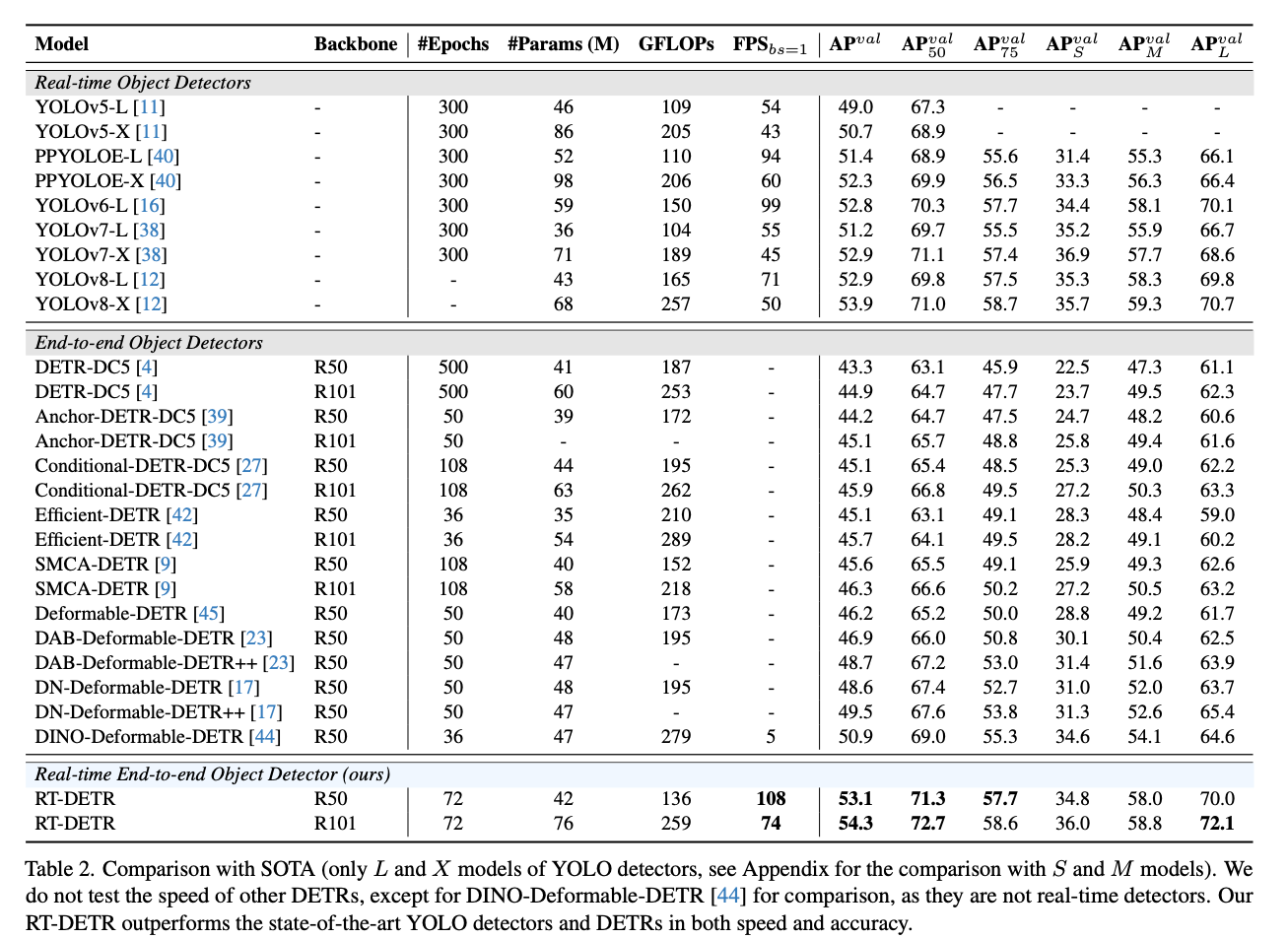

RT-DETR achieves an excellent balance of speed and accuracy across many object detection tasks.
Source: https://arxiv.org/abs/2304.08069
Improvements of RT-DETRv2
RT-DETRv2 replaces grid_sample with discrete_sample, introduces strong data augmentation during training, and adjusts hyperparameters.
Usage
You can use RT-DETRv2 with ailia SDK using the following command:
$ python3 rt-detr-v2.py --input demo.jpg
