ailia SDK tutorial (model conversion to ONNX)

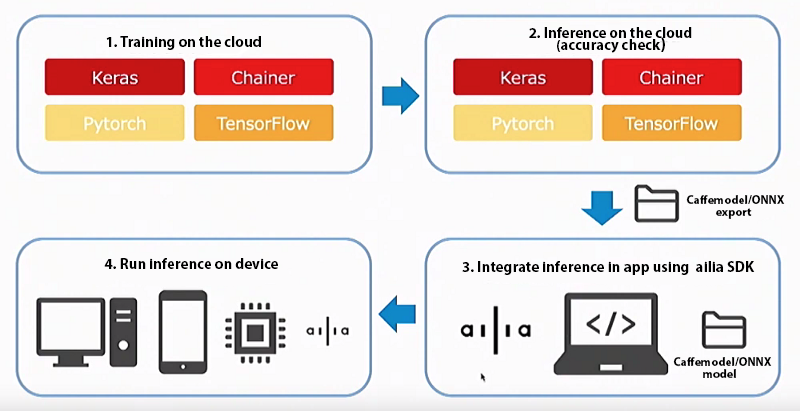

This is a tutorial on exporting models trained with various learning frameworks such as Pytorch and TensorFlow to ONNX that can be used with ailia SDK. ailia SDK makes it easy to deploy ONNX to various platforms including mobile devices. For more information about ailia SDK, please refer to here.
Model formats supported by the ailia SDK
The ailia SDK supports the ONNX format. To use your own trained models with ailia SDK, use the export to ONNX feature provided by the training framework.
The repository below contains a sample showing how to export to ONNX.
In addition, examples of ailia MODELS export scripts can be found in the following wiki.
The ONNX version supported by ailia SDK is opset = 10 . The supported layers are listed on the ailia SDK website and in the specifications.
About model export
Structure of the inference process for machine learning models
The inference process using a machine learning model consists of three stages: pre-processing, inference, and post-processing.
In the pre-processing stage, the input images is often normalized and channels might get re-ordered. In the inference stage, preprocessed data is input to a machine learning model, which outputs some data. The post-processing stage then makes sense of those data, often involving value range conversion, channel reordering, or sometimes more advanced processing.
Since the ONNX conversion of machine learning models does not include those pre-processing and post-processing stages, they need to be implemented separately in Python or C.
Model export procedure
Exporting a machine learning model involves passing the model object to an export function in a Python script, which outputs the model in ONNX format.
Since the input is a model object, you can embed the export code directly into your program that contains the model you want to export. In the case of Pytorch, call torch.onnx.export after loading the .pt file using load_state_dir.
When exporting, you need to explicitly specify and check the input shape of the model. One way to check the input shape of a model is to actually load the model and call print(input.shape), or you can use Netron to visualize the model structure.
Implementation of pre-processing and post-processing
Since a machine learning model receives and returns data as arrays of numbers, it is necessary to write pre-processing and post-processing code to get meaningful information (eg. bounding boxes) from this data.
You will need to refer to the repository from which you got the original model from to see what kind of pre-processing and post-processing is actually required. Using the source code from the original repository, perform print(input), print(output), etc. to see what kind of data is actually flowing.
Troubleshooting
If you are not getting the expected results from converted ONNX model, if must come from either the pre-processing, the inference, or the post-processing stage.
In order to isolate where things go wrong, save the input and output of the machine learning model at different stages in your program to a file using numpy.save, and use it to perform inference and see if the same data is output. With this iterative process it is possible to isolate whether the problem is caused by inference in ONNX, preprocessing, or postprocessing.
If for example the output of the ONNX model is the same as the original model using the same input data, it means then the export to ONNX is successful, then the issue must come from the pre-processing and post-processing.
Exporting from Pytorch
Pytorch supports exporting to ONNX by default. The export is done with torch.onnx.export, where model and input variables are given as arguments. Make sure to set opset_version=10 or opset_version=11 to use the export with ailia SDK.
Exporting a model with single input
Download VGG16, a single-input, single-output model from torchvision, and export it to vgg16_pytorch.onnx .
Exporting a model with multiple inputs and outputs
When exporting a model with multiple inputs and outputs, give the input variables in list format.
Export of specific functions
By default, model.forward is exported, but if you want to export a different function, such as model.predict , assign the function to model.forward.
Exporting a model with variable length inputs
If the shape of the input is not determined until inference time, you can name the input with input_names and specify dynamic_axes for the names to make any axis variable length. Axes can be specified from 0.

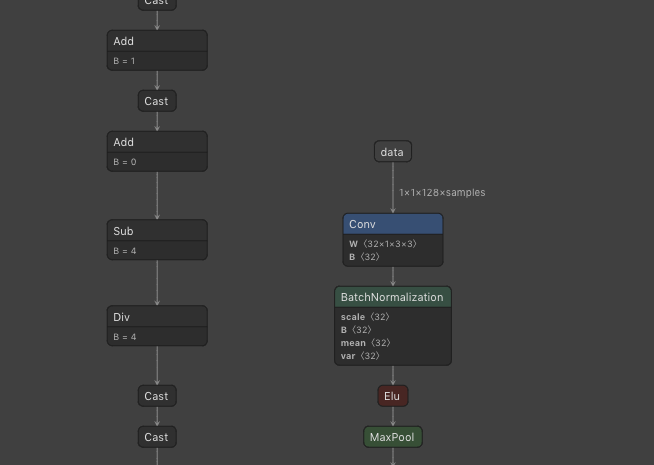

When you view the exported model in Netron, you will see that the X axis is variable length.
When reasoning with the ailia SDK, execute net.set_input_shape((1,1,124,64)) to determine the shape.
Exporting a model using Resize
In ONNX, the Resize operator has been extended from opset=11 to support Resize matching Pytorch. opset=11 has been partially enabled in ailia SDK since 1.2.4. When exporting models that use Resize, such as segmentation, the accuracy may be improved by exporting with opset=11.
Exporting from Chainer
Chainer also officially supports exporting to ONNX, install onnx_chainer via pip.
pip3 install onnx_chainer
In the following example, VGG16 contained in chainercv is exported to ONNX.
Exporting from Keras
In the case of Keras, export with keras2onnx which can be installed using pip.
pip3 install keras2onnx
In the example below, we export the VGG16 model contained in keras to ONNX.
One thing to note when exporting with Keras is that the batch size of the input of the exported model is undefined (N). Therefore, it is necessary to call set_input_shape during inference.
Export using TensorFlow2.x + Keras
If you want to export models using Keras, which is bundled with TensorFlow 2.x, you need to install keras2onnx from the source code as described in pypi.
Due to some reason, the package release paused, please install it from the source, and the support of keras or tf.keras over tensorflow 2.x is only available in the source.
For example, if I export a TensorFlow2 model with keras2onnx 1.6.0, the export to ONNX succeeds, but the following error occurs during inference in ONNX.
Op (MatMul) [ShapeInferenceError] Incompatible dimensions for matrix multiplication
Also, in keras2onnx 1.7.0, the following error occurs during export.
Unable to find out a correct type for tensor type = 20
These problems can be solved by installing keras2onnx 1.8.0 from source code. To install keras2onnx from source code, run the following commands.
git clone git@github.com:onnx/keras-onnx.git # or download zip
cd keras-onnx
pip install .
Export from TensorFlow
To export from TensorFlow, use tf2onnx which can be installed via pip.
pip3 install tf2onnx
In the following example, a graph imported from TensorFlow.keras to TensorFlow is output to ONNX. In the case of TensorFlow, the graph must be freezed beforehand, just as when exporting to TensorFlowLite. In the case of TensorFlow, you need to freeze the graph beforehand as you do when exporting to TensorFlow Lite. Also, you need to replace the training parameters with constants.
Also, since TensorFlow is Channel Last and ONNX is Channel First, Transpose occurs at every Conv. If you want to get the best performance, you need to use TransposeOptimizer to suppress the transpose generation.
Therefore, the code becomes more complex as shown below.
When freezing a graph in TensorFlow, the name of the node of the final output must be specified in convert_variables_to_constants. The node name can be obtained by enumerating graph_def.node.
If you import_graph_def a frozen graph, the node name will have the prefix import/ added to it, so you need to add import/ to the node names of input_names and output_names you specify to tf2onnx.
Troubleshooting export from TensorFlow
If your graph contains BatchNormalization, you may get an *incompatible with expected resource* error when you try to freeze it.
ValueError: Input 0 of node import/mobilenet_1.00_224/conv1_bn/cond/ReadVariableOp/Switch was passed float from import/conv1_bn/gamma:0 incompatible with expected resource.
If you get an error when fetching a TensorFlow graph from Keras and freezing it, you can work around it by calling tf.keras.backend.set_learning_phase(0).
If you are using TensorFlow alone and the error occurs, you can work around it by inserting the following code.
About Channel First and Channel Last
ONNX and ailia SDK handle internal tensors in Channel Firstformat, which is a (N,C,H,W) format where data is stored in aggregate per channel, while Channel Last format is (N,H,W,C) where data is stored in interleaved channels. Channel First can be seen as RRRGGGBBB, and Channel Last as RGBRGBRGB.
Pytorch and Chainer are in Channel First format, while Keras and TensorFlow are in Channel Last format. When exporting from Pytorch or Chainer, the model can be given as-is to ailia SDK. When exporting from Keras or TensorFlow, a Transpose layer may be inserted to convert between Channel First and Channel Last formats. In that case you can improve the inference speed by removing the Transpose Layer with tf2onnx Transpose Optimizer or ONNX Optimizer.
Output ofPrototxt
You will need to output prototxt from ONNX in order to load it in the ailia SDK.
The ailia SDK ships with a script for outputting prototxt from ONNX. This script outputs a .prototxt file when ONNX is given as an argument.
python3 onnx2prototxt.py input.onnx
Testing with ailia SDK
We will load the ONNX and prototxt into the ailia SDK using the python API to test the inference.
The ONNX output from Keras has an undefined batch size which cannot be inferred as is. After creating a Net or Classifier instance, call set_input_shape to set the input/output shape before calling predict API or classifier API.
net.set_input_shape((1,224,224,3))
Profiling with ailia SDK
To analyze the speed, use the profile mode of the ailia SDK. The processing time of each layer will be output.
net.set_profile_mode(True)net.predict(input_data)print(net.get_summary())
ONNX optimization
The ONNX graph can be optimized using onnx.optimizer.optimize. By performing graph optimization, we can merge the weights of BatchNormalization into Convolution, which can improve speed on mobiles.
opt_passes = [
‘extract_constant_to_initializer’,
‘fuse_add_bias_into_conv’,
‘fuse_bn_into_conv’,
‘fuse_consecutive_concats’,
‘fuse_consecutive_log_softmax’,
‘fuse_consecutive_reduce_unsqueeze’,
‘fuse_consecutive_squeezes’,
‘fuse_consecutive_transposes’,
‘fuse_matmul_add_bias_into_gemm’,
‘fuse_pad_into_conv’,
‘fuse_transpose_into_gemm’,
]
model = onnx.optimizer.optimize(model, opt_passes )
The ailia SDK ships with a script (onnx_optimizer.py) to perform graph optimization.
This script outputs a .opt.onnx file when an ONNX model is given as an argument.
python3 onnx_optimizer.py input.onnx
The model still conforms to the standard ONNX specification even after graph optimization.
Note that the official ONNX optimizer has errors in some graphs. We are waiting for the official update for this.
We plan to add an option in the ailia SDK to allow optimization even when the official ONNX optimizer fails.
By uploading the output prototxt to Netron, you can analyze the graph structure.
