ailia SDK Tutorial (JNI)
This is a tutorial on how to use ailia SDK with the Java Native Interface (JNI) to perform deep learning inference in Java using GPU. For more information about ailia SDK, please refer to here.
Using the ailia SDK from Java
ailia SDK provides a Java Native Interface (JNI) API to perform inference using ONNX on Android devices.
Since ONNX does not require any special conversion operations and can be used as-is, it is possible to run ONNX models on Android that were previously difficult to run due to conversion error problems.
In particular, it is an ideal solution for running models trained with Pytorch on Android.
Download ailia SDK
First, you need to download the evaluation version of the ailia SDK from the ailia website.
Download the Android Studio project
Clone the ailia-android-studio repository below which contains the Android Studio project files.
Copy the ailia SDK library
Copy the ailia SDK library files from the library/android folder of the ailia SDK to app/src/main/jniLibs of the downloaded project.
ailia_sdk/library/android/arm64-v8a/libailia.so
ailia_sdk/library/android/armeabi-v7a/libailia.so
ailia_sdk/library/android/x86/libailia.so
ailia_sdk/library/android/x86_64/libailia.so ↓↓↓app/src/main/jniLibs/arm64-v8a/libailia.so
app/src/main/jniLibs/armeabi-v7a/libailia.so
app/src/main/jniLibs/x86/libailia.so
app/src/main/jniLibs/x86_64/libailia.so

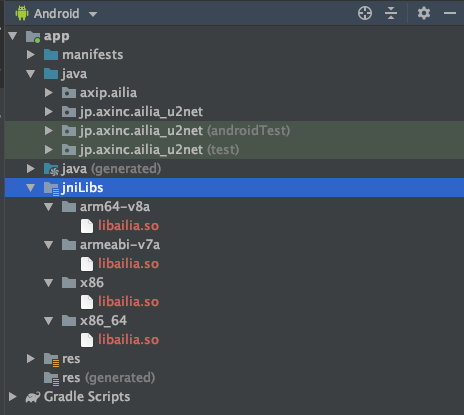

After the copy succeeded the file structure should look like below.
Open the Android Studio project

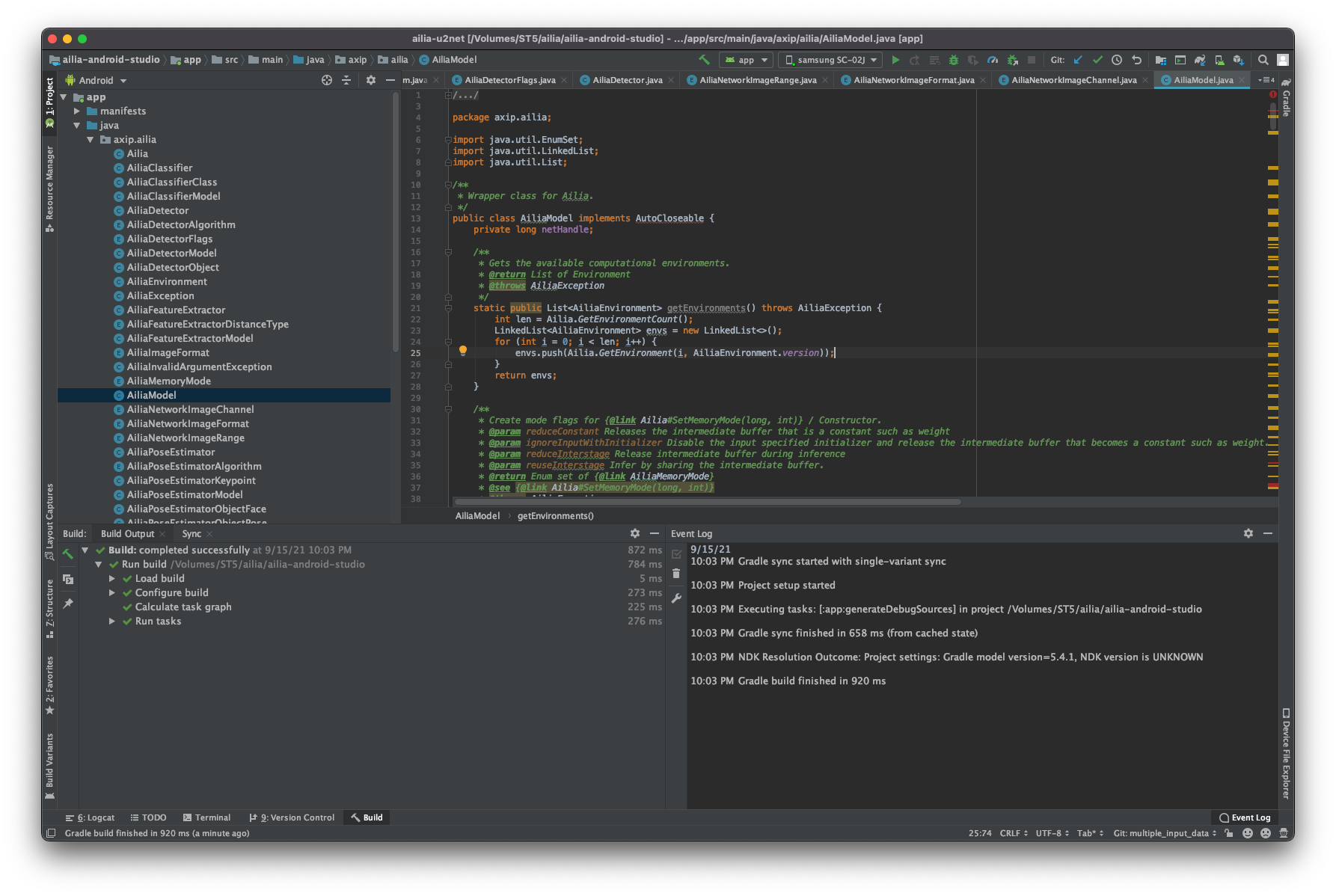

Open the project you have downloaded using Android Studio.
Connect your Android device and click on the play button in the upper right corner to build and run the application. The background segmentation model should run on the Android device like below.
Background segmentation on Android
Inference of single-input /single-output models
To infer a single-input /single-output model, use the predict API.
Read the onnx and prototxt files placed in the res/raw folder and initialise the AiliaModel instance from it. Then allocate input and output buffers with the buffer size calculated from getInputShape and getOutputShape, and perform inference by calling the predict API.
//create ailia instance
int envId = 0;
AiliaModel ailia;
ailia = new AiliaModel(envId, Ailia.MULTITHREAD_AUTO,
loadRawFile(R.raw.u2netp_opset11_proto), loadRawFile(R.raw.u2netp_opset11_weight));
//prepare input and output buffer
AiliaShape input_shape;
AiliaShape output_shape;
input_shape = ailia.getInputShape();
output_shape = ailia.getOutputShape();int input_size = input_shape.x*input_shape.y*input_shape.z*input_shape.w;
float [] input_buf = new float[input_size];
int preds_size = output_shape.x*output_shape.y*output_shape.z*output_shape.w;
float [] output_buf = new float[preds_size];//fill input data//compute
int float_to_byte = 4;
ailia.predict(output_buf, preds_size * float_to_byte, input_buf, input_size * float_to_byte);
The following sample shows how to infer a model with one input and one output.
Inference of multiple input-output models
To infer a model with multiple inputs and outputs, use the update API.
The function setInputBlobData sets data to all blobs, call the update API to infer, and finally getBlobData to get the processing results. If you try to infer a model with multiple inputs with the predict API, an error -7(STATUS_INVALID_STATE) will be returned.
//create ailia instance
int envId = 0;
AiliaModel ailia;
ailia = new AiliaModel(envId, Ailia.MULTITHREAD_AUTO,
loadRawFile(R.raw.u2netp_opset11_proto), loadRawFile(R.raw.u2netp_opset11_weight));
//prepare input and output buffer
AiliaShape input_shape;
AiliaShape output_shape;
input_shape = ailia.getBlobShape(ailia.getBlobIndexByInputIndex(0));
output_shape = ailia.getBlobShape(ailia.getBlobIndexByOutputIndex(0));int input_size = input_shape.x*input_shape.y*input_shape.z*input_shape.w;
float [] input_buf = new float[input_size];
int preds_size = output_shape.x*output_shape.y*output_shape.z*output_shape.w;
float [] output_buf = new float[preds_size];//fill input data//compute
int float_to_byte = 4; ailia.setInputBlobData(input_buf,input_size*float_to_byte,ailia.getBlobIndexByInputIndex(0)); // if the model has multiple input, please repeat this line
ailia.update();
ailia.getBlobData(output_buf,preds_size*float_to_byte,ailia.getBlobIndexByOutputIndex(0));
The following sample shows how to infer a model with multiple inputs and outputs.
